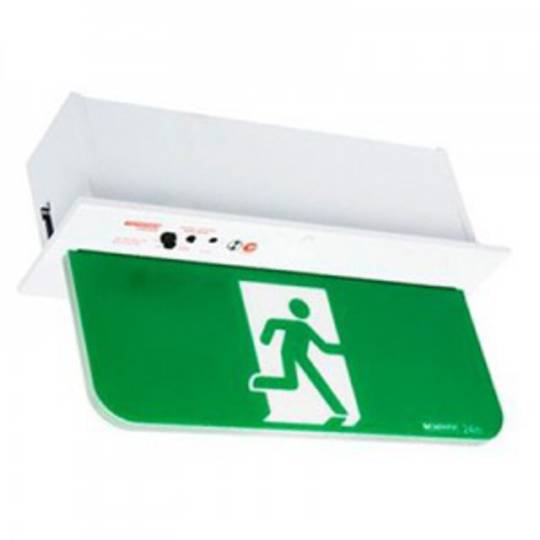

The 10 Watt Recessed Flaglite Exit combines a slim, attractive design with functionality. Compatible with M+H Wi Net Central Monitoring and M+H Sentinel Automatic Self Testing Systems.
"Good value good all round ".
Features :
• Maintained mode of operation
• Discretely recesses into the building’s false ceiling
• Diverse choice of single or double sided Exit diffusers
• Automatic battery low-voltage cut out to prevent over discharge of the battery
• Easy to install and remove for maintenance purposes
• Premium 70°C high temperature Nickel Cadmium battery
• Red LED indicates a healthy AC mains supply and functioning charger
• Test switch to test the emergency operation while AC mains is healthy
• Designed and tested in accordance with AS2293
Quick Specs
Input
Operating Voltage
240V
Frequency
50Hz
Output
Light Source
1 x 10W Philips T8 Fluoro
Function
Maintained
Power Consumption
14W
Battery
Type
High Temperature Nickel Cadmium
Charger
Trickle / Boost Dual Rate Charge
Protection
Overcharge & Low Voltage Disconnect
Autonomy Duration
2 Hours Minimum
Physical
IP Classification
IP20
Weight
4.0kg
Length
410mm
Width
170mm
Height
125mm
Construction
Body: Sheetmetal Powdercoat White
Diffuser: Acrylic
Environment
Temperature
0°C - 40°C
Relative Humidity
0 - 95%
Conformance
Standards
AS / NZS2293, AS60598.2.22, EMC
Intelligence
M+H Sentinel
Yes
M+H Wi Net
Yes
MFLNS + RMFL Diffuser
SPACING TABLE
MOUNTING HEIGHT
NATA Classification
2.1
2.4
2.7
3.0*
C0 - C5
5.9
6.1
6.3
6.4
C90 - C12.5
7.8
8.2
8.6
8.9
*Maximum mounting height allowed is 2.7m but for exceptions see AS2293.1:2005
