Home > Products > Emergency Lighting > BARDIC PREMIUM 3W LED W/P IP67 Maint Exit Body Only - NiCd

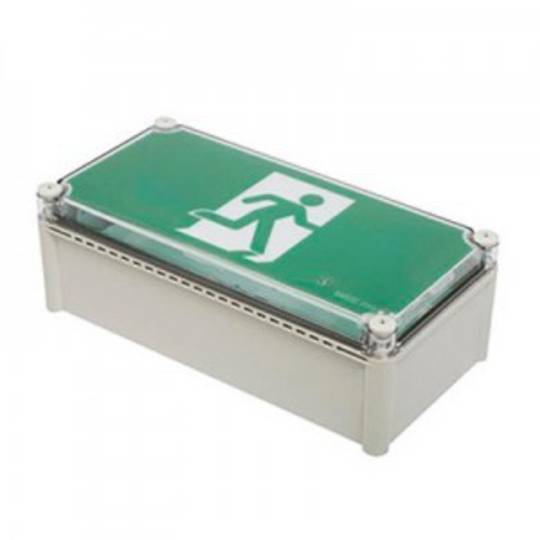

BARDIC PREMIUM 3W LED W/P IP67 Maint Exit Body Only - NiCd

larger imageMove mouse over the image to magnify

BARDIC has a complete range of weatherproof fittings. The 3W LED Weatherproof fiting is designed to utilise either an Exit or Emergency Diffuser. Luminaire bodies are manufactured from high impact polycarbonate (IP66) models to withstand the harshest environmental and weather conditions. Compatible with WINET Central Monitoring and Sentinel Automatic Self Testing Systems.

"Good value good all round ".

Features :

• Weatherproof IP67 rated

• Automatic battery low voltage cut-out to prevent over discharge of the battery

• Premium High temperature NiCad Batteries with dual rate charger for maximum battery life

• High temperature components for extended life

• Red LED indicates a healthy AC mains supply and functioning charger

• Test switch to test the emergency operation while AC mains is healthy

• Internal switch link to permit connection of an external switch to control the mains operated lamp without affecting the emergency operation

• Designed and tested to comply with AS/NZS 2293

Quick Specs

Input	Operating Voltage	240V
Input	Frequency	50Hz

Output	Light Source	6 x 0.5W Everlight LEDs
	Function	Maintained
	Power Consumption	3W

Battery	Type	High Temperature Nickel Cadmium
	Charger	Trickle / Boost Dual Rate Charge
	Protection	Overcharge & Low Voltage Disconnect
	Autonomy Duration	2 Hours Minimum

Physical	IP Classification	IP66
	Weight	3.0kg
	Length	385mm
	Width	185mm
	Height	135mm
	Construction	Glass-filled Polycarbonate

Environment	Temperature	0°C - 40°C
Environment	Relative Humidity	0 - 95%

Conformance	Standards	AS / NZS2293, AS60598.2.22, EMC

Intelligence	Sentinel Compatibility	Yes
Intelligence	WINET Compatibility	Yes

MLEDNSWP + RMWP1
SPACING TABLE	MOUNTING HEIGHT (m)
NATA Classification	2.1	2.4	2.7	3.0*
C0 - E2.5	5.6	5.8	5.8	6.0
C90 - E1.6	4.8	4.8	4.8	4.4

*Maximum mounting height allowed is 2.7m but for exceptions see AS2293.1:2005

MLEDNSWP + WPA
SPACING TABLE	MOUNTING HEIGHT (m)
NATA Classification	2.1	2.4	2.7	3	3.3	3.6	4	5

C0 - E50	9.8	11.0	12.0	12.8	13.8	14.6	15.6	16.8
C90 - C63	11.9	12.8	13.5	14.2	14.9	15.5	16.2	17.1
